• Fire tested in accordance with AS1530.4:2014 up to -/120/-
  • Tested in accordance with AS1530.7 for smoke containment
  • Ideal for use in lieu of smoke doors
  • For sizes up to 24m2 (maximum width 8m)

Product Categories

Description

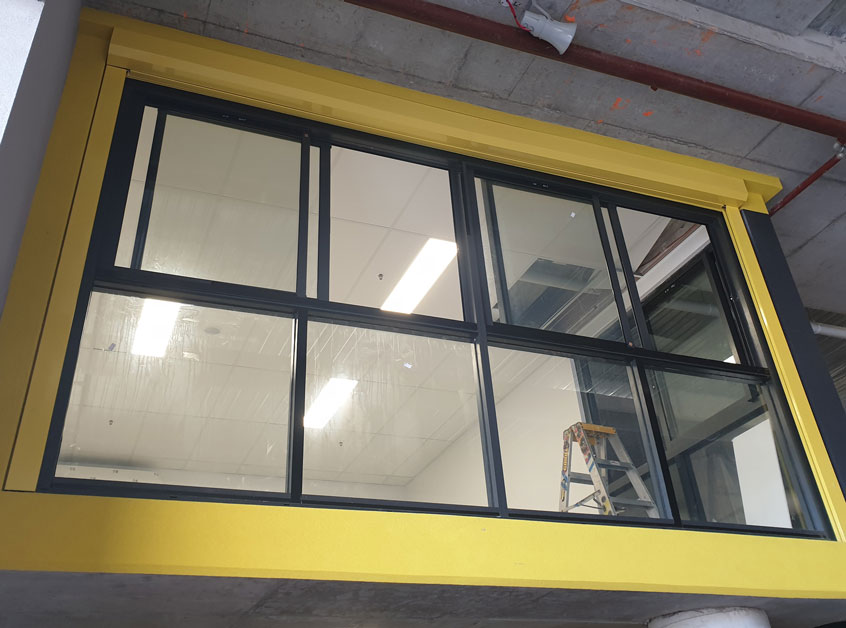

Certified Australian Made and Owned, the Fyrehalt V is ideal for small to medium sized openings up to 8m wide.

This fire shutter has been fire tested to provide Fire Resistance Levels up to -/120/- in various wall types, including masonry, concrete and plasterboard walls.

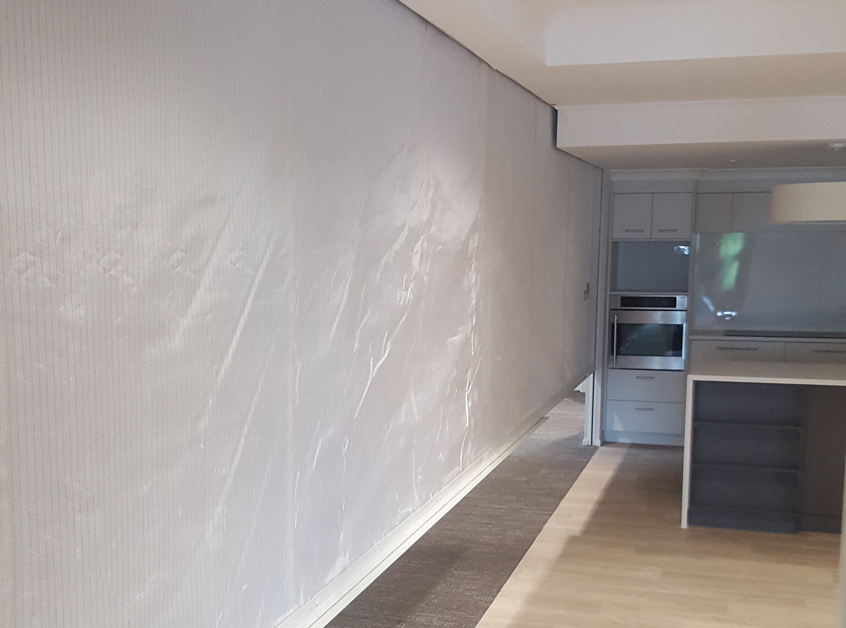

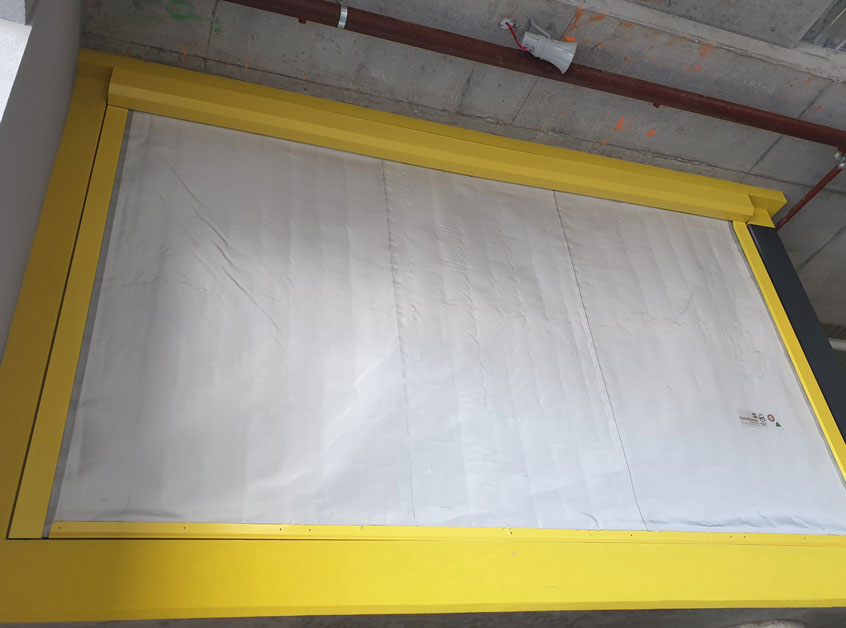

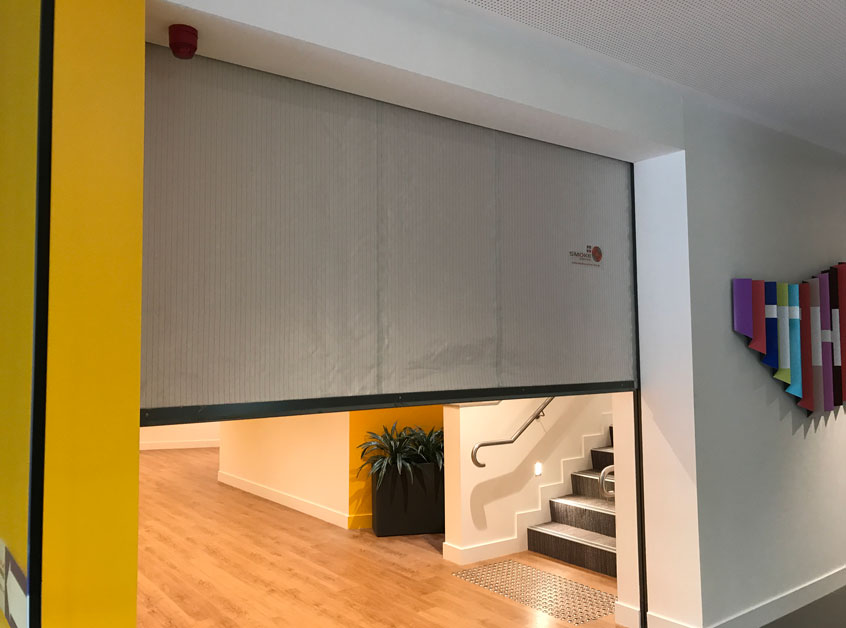

The Fyrehalt V system consists of a single overhead coil fire curtain, with no overlap.  It has also been tested in accordance with AS1530.7 for smoke containment. It is suitable for use in combined fire and smoke walls or fire walls.

The unique and compact design of the Fyrehalt V allows it to be easily integrated into both existing and new buildings, allowing for maximum use of internal spaces.

The Fyrehalt V is independent third party verified for compliance with fire test approvals and incorporates the Warnock Hersey Mark (WH).  This product certification provides our customers with complete confidence that the system supplied from our Australian factory is as per the fire tested prototype.

The WH Certification is recognised around the world and Smoke Control proudly exports the Fyrehalt V fire curtains/shutters from our Australian factory to many high-profile projects both locally and abroad.



Recent Projects

Sydney Metro North West

Sydney Metro North West

Our Fibershield H Horizontal Fire Curtains provide passive fire protection for the Sydney Metro North West network. We also installed are Fibershield V long span fire curtains and Fyrehalt Fire Doors.

Kirribilli, NSW

Kirribilli, NSW

Multiple fire rated spandrel systems were installed to fulfil building requirements within this premium residential complex. The transparent glazed fire rated spandrels are also capable of resisting minimal wind loading as per AS1170.2.

Brisbane, QLD

Brisbane, QLD

Our Fyrehalt – Evolution concertina fire curtain is ideal for protecting openings in floor slabs, and can be installed in a multitude of configurations and shapes including polygons and curves as seen in this install at 80 Ann St. Brisbane.
